Flat Cables
Our Flat Cables are built for tough conditions in waterlogged terrains. Their flat design ensures low-profile installation and resistance to moisture. Perfect for agricultural and industrial applications.
Reliability Assured

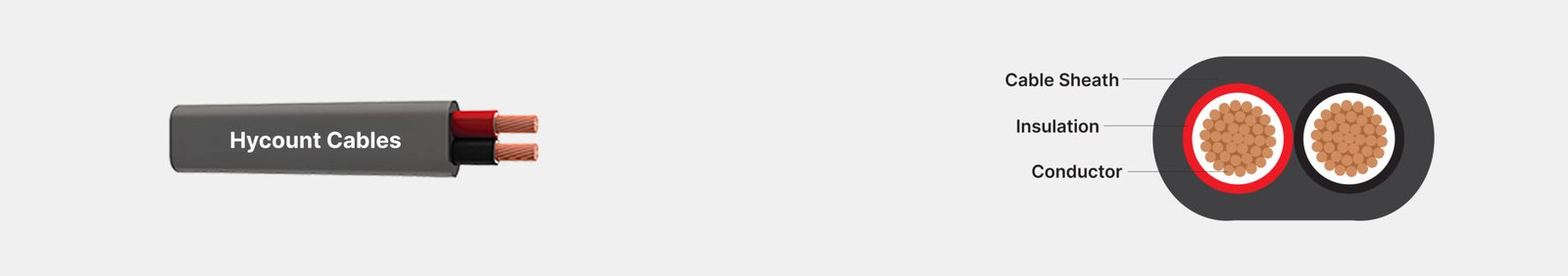

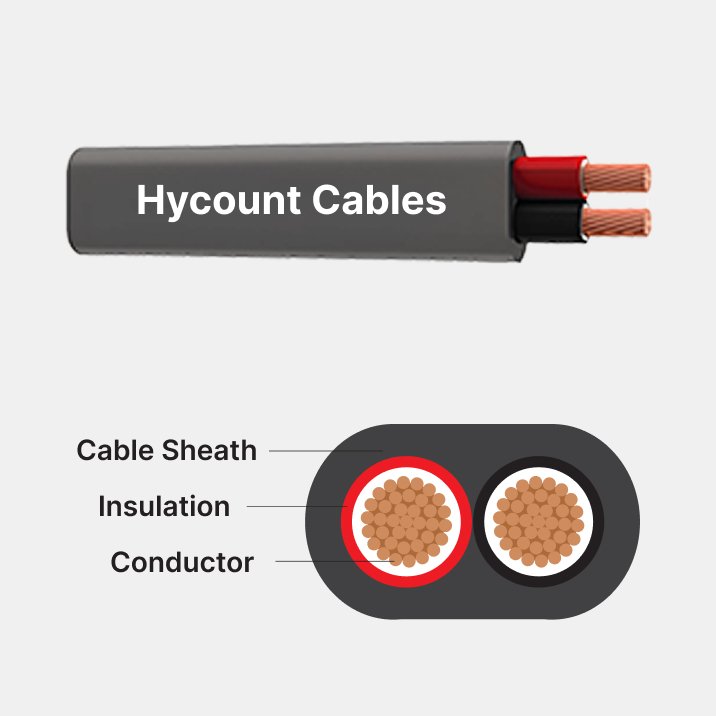

PVC/PVC Twin Core Flat Cable (IS 694)
Hycount PVC / PVC Twin Core Flat Cables are ideal for power distribution in residential buildings and in industries. PVC insulation of both flame retardant and flat, they are safer to use and can easily be installed in areas which may be difficult to access.
Application
PVC 70°C cables suitable for wiring in residential and commercial infrastructure. HR PVC 85°C cables are suitable for wiring in residential and commercial infrastructure for a higher ambient temperature. FR-LSH 70°C cables are suitable for wiring in public places like schools, hospitals, theatres, etc. These are also suitable for fire prone areas and chemical factories.
Technical Data
Approvals: IS 694 marked, FIA / TAC
Conductor: Electrolytic grade annealed copper
Core Colour: Red, black
Sheath Colour: Black, grey and white
Packing: Standard packing of 100m in coils. Longer length available on request.
PVC/PVC Twin Core
Flat Cable (IS 694)
Hycount PVC / PVC Twin Core Flat Cables are ideal for power distribution in residential buildings and in industries. PVC insulation of both flame retardant and flat, they are safer to use and can easily be installed in areas which may be difficult to access.
Application
PVC 70°C cables suitable for wiring in residential and commercial infrastructure. HR PVC 85°C cables are suitable for wiring in residential and commercial infrastructure for a higher ambient temperature. FR-LSH 70°C cables are suitable for wiring in public places like schools, hospitals, theatres, etc. These are also suitable for fire prone areas and chemical factories.
Technical Data
Approvals: IS 694 marked, FIA / TAC
Conductor: Electrolytic grade annealed copper
Core Colour: Red, black
Sheath Colour: Black, grey and white
Packing: Standard packing of 100m in coils. Longer length available on request.

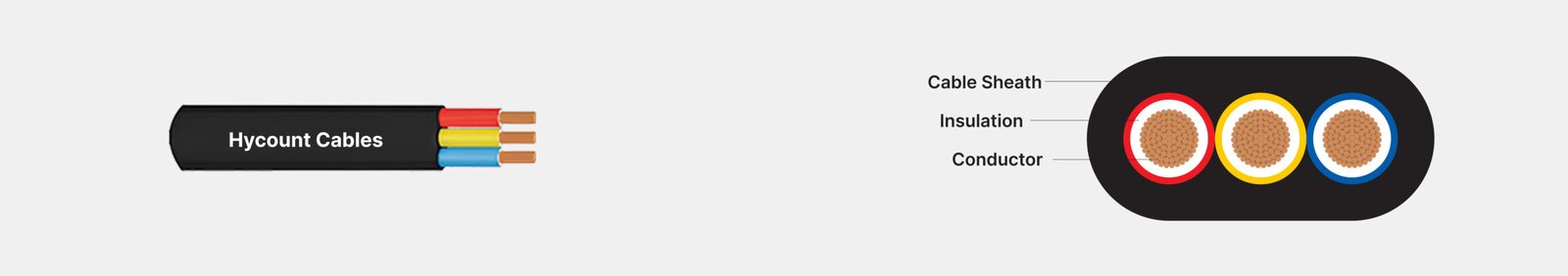

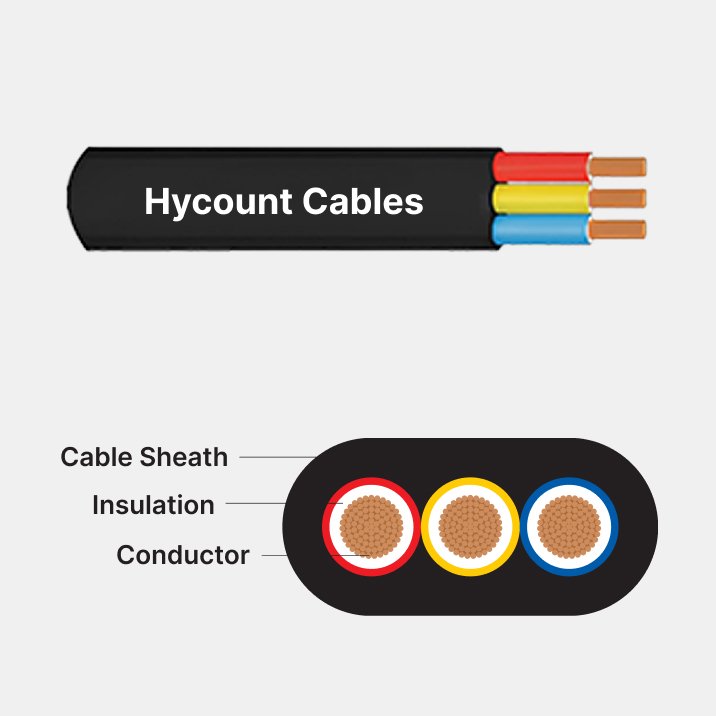

PVC/PVC 3 Core Submersible Flat Cable
Hycount PVC/PVC 3 Core Submersible Flat Cables are especially useful in submersible pump and underwater situations. These cables also provide insulations with superior resistance to moisture and other tough conditions when used.
Application
The PVC insulated and sheathed 3 core flat cables are mainly used in pump connections. They are also used in many industrial applications. The sheath is specially made out to resist tough and difficult outdoor conditions & excellent resistant to water.
Technical Data
Approvals: IS 694 marked, FIA/TAC
Conductor: Electrolytic grade annealed copper
Core Colour: Red, yellow (centre core), blue
Conductor: Strands of electrolytic annealed plain copper are multi-drawn for uniformity of resistance, dimension and flexibility.
Sheath Colour: Black
Voltage Grade: Upto and including 1100V
Packing: Standard packing of 100 mtr. in coils. Longer length available on request.
PVC/PVC 3 Core
Submersible Flat Cable
Hycount PVC/PVC 3 Core Submersible Flat Cables are especially useful in submersible pump and underwater situations. These cables also provide insulations with superior resistance to moisture and other tough conditions when used.
Application
The PVC insulated and sheathed 3 core flat cables are mainly used in pump connections. They are also used in many industrial applications. The sheath is specially made out to resist tough and difficult outdoor conditions & excellent resistant to water.
Technical Data
Approvals: IS 694 marked, FIA/TAC
Conductor: Electrolytic grade annealed copper
Core Colour: Red, yellow (centre core), blue
Conductor: Strands of electrolytic annealed plain copper are multi-drawn for uniformity of resistance, dimension and flexibility.
Sheath Colour: Black
Voltage Grade: Upto and including 1100V
Packing: Standard packing of 100 mtr. in coils. Longer length available on request.
XLPE/PVC 3 Core Submersible Flat Cable
These submersible flat cable ranges for heavy duty submersible pumps are highly recommended and are produced in Hycount XLPE/PVC 3 Core. The insulation used in the XLPE is highly thermal resistant and mechanically reliable even in the worst conditions.
Application
These cables are mainly used in pump connection. Though they are mainly used to supply power to pumps, they are also used in industrial applications. These cables are specially manufactured keeping in mind the severe, tough and difficult conditions in which they are used.
Technical Data
Conductor: Electrolytic grade annealed plain copper to EN 60228, uniformly bunched to form a circular shape
Core Colours : Red, yellow (centre core), blue
Sheath Colour: Black
Voltage Grade: Upto and inducting 1100V
Packing: Standard packing of 100mtr in coils. Longer length available on request.
XLPE/PVC 3 Core
Submersible Flat Cable
Application
These cables are mainly used in pump connection. Though they are mainly used to supply power to pumps, they are also used in industrial applications. These cables are specially manufactured keeping in mind the severe, tough and difficult conditions in which they are used.
Technical Data
Conductor: Electrolytic grade annealed plain copper to EN 60228, uniformly bunched to form a circular shape
Core Colours : Red, yellow (centre core), blue
Sheath Colour: Black
Voltage Grade: Upto and inducting 1100V
Packing: Standard packing of 100mtr in coils. Longer length available on request.
Flat Cables
Reliability Assured
PVC/PVC Twin Core Flat Cable (IS 694)
Hycount PVC / PVC Twin Core Flat Cables are ideal for power distribution in residential buildings and in industries. PVC insulation of both flame retardant and flat, they are safer to use and can easily be installed in areas which may be difficult to access.
Application
PVC 70°C cables suitable for wiring in residential and commercial infrastructure. HR PVC 85°C cables are suitable for wiring in residential and commercial infrastructure for a higher ambient temperature. FR-LSH 70°C cables are suitable for wiring in public places like schools, hospitals, theatres, etc. These are also suitable for fire prone areas and chemical factories.
Technical Data
Approvals: IS 694 marked, FIA / TAC
Conductor: Electrolytic grade annealed copper
Core Colour: Red, black
Sheath Colour: Black, grey and white
Packing: Standard packing of 100m in coils. Longer length available on request.
PVC/PVC Twin Core
Flat Cable (IS 694)
Hycount PVC / PVC Twin Core Flat Cables are ideal for power distribution in residential buildings and in industries. PVC insulation of both flame retardant and flat, they are safer to use and can easily be installed in areas which may be difficult to access.
Application
PVC 70°C cables suitable for wiring in residential and commercial infrastructure. HR PVC 85°C cables are suitable for wiring in residential and commercial infrastructure for a higher ambient temperature. FR-LSH 70°C cables are suitable for wiring in public places like schools, hospitals, theatres, etc. These are also suitable for fire prone areas and chemical factories.
Technical Data
Approvals: IS 694 marked, FIA / TAC
Conductor: Electrolytic grade annealed copper
Core Colour: Red, black
Sheath Colour: Black, grey and white
Packing: Standard packing of 100m in coils. Longer length available on request.
PVC/PVC 3 Core Submersible Flat Cable
Hycount PVC/PVC 3 Core Submersible Flat Cables are especially useful in submersible pump and underwater situations. These cables also provide insulations with superior resistance to moisture and other tough conditions when used.
Application
The PVC insulated and sheathed 3 core flat cables are mainly used in pump connections. They are also used in many industrial applications. The sheath is specially made out to resist tough and difficult outdoor conditions & excellent resistant to water.
Technical Data
Approvals: IS 694 marked, FIA/TAC
Conductor: Electrolytic grade annealed copper
Core Colour: Red, yellow (centre core), blue
Conductor: Strands of electrolytic annealed plain copper are multi-drawn for uniformity of resistance, dimension and flexibility.
Sheath Colour: Black
Voltage Grade: Upto and including 1100V
Packing: Standard packing of 100 mtr. in coils. Longer length available on request.
PVC/PVC 3 Core
Submersible Flat Cable
Hycount PVC/PVC 3 Core Submersible Flat Cables are especially useful in submersible pump and underwater situations. These cables also provide insulations with superior resistance to moisture and other tough conditions when used.
Application
The PVC insulated and sheathed 3 core flat cables are mainly used in pump connections. They are also used in many industrial applications. The sheath is specially made out to resist tough and difficult outdoor conditions & excellent resistant to water.
Technical Data
Approvals: IS 694 marked, FIA/TAC
Conductor: Electrolytic grade annealed copper
Core Colour: Red, yellow (centre core), blue
Conductor: Strands of electrolytic annealed plain copper are multi-drawn for uniformity of resistance, dimension and flexibility.
Sheath Colour: Black
Voltage Grade: Upto and including 1100V
Packing: Standard packing of 100 mtr. in coils. Longer length available on request.
XLPE/PVC 3 Core Submersible Flat Cable
These submersible flat cable ranges for heavy duty submersible pumps are highly recommended and are produced in Hycount XLPE/PVC 3 Core. The insulation used in the XLPE is highly thermal resistant and mechanically reliable even in the worst conditions.
Application
These cables are mainly used in pump connection. Though they are mainly used to supply power to pumps, they are also used in industrial applications. These cables are specially manufactured keeping in mind the severe, tough and difficult conditions in which they are used.
Technical Data
Conductor: Electrolytic grade annealed plain copper to EN 60228, uniformly bunched to form a circular shape
Core Colours : Red, yellow (centre core), blue
Sheath Colour: Black
Voltage Grade: Upto and inducting 1100V
Packing: Standard packing of 100mtr in coils. Longer length available on request.
XLPE/PVC 3 Core
Submersible Flat Cable
Application
These cables are mainly used in pump connection. Though they are mainly used to supply power to pumps, they are also used in industrial applications. These cables are specially manufactured keeping in mind the severe, tough and difficult conditions in which they are used.
Technical Data
Conductor: Electrolytic grade annealed plain copper to EN 60228, uniformly bunched to form a circular shape
Core Colours : Red, yellow (centre core), blue
Sheath Colour: Black
Voltage Grade: Upto and inducting 1100V
Packing: Standard packing of 100mtr in coils. Longer length available on request.
