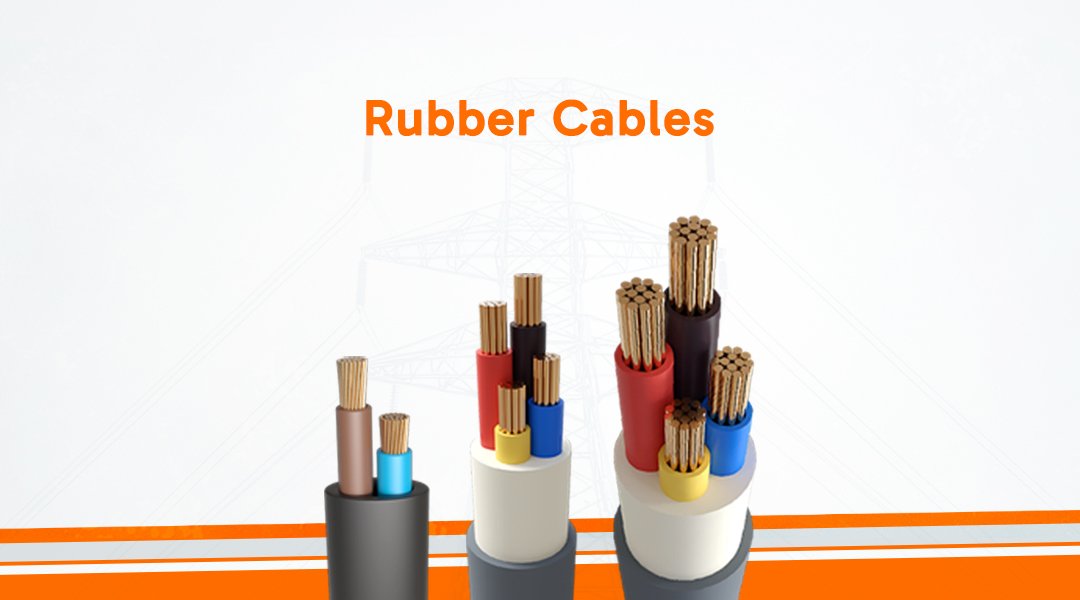

Rubber Cables
The Hycount Multicore Round Cables are suitable for low voltage signal, motors and control panels. They can provide high flexibility in construction, thermal insulation as well as fire protection.
Application
Elastomeric/rubber cable is used widely across many industries ranging from industries involved in water, renewable energy, distribution and power networks, nuclear and thermal power stations, airports, marine, defence, telecommunications, windmills, building,mining,onshore and offshore applications,ship wiring, railways, automation, audio-visual and manufacturing industries, these cables can be suitable for a huge amount of applications.
Features
- BIS certified ( IS:9968 (Pt-1), IS:14494, IS:9968 (Pt-2) product which is a best third party guarantee in the country.
- Available in wide range of operating temperature ranging from -55°C to over 300°C.
- The copper conductor provides excellent corrosion resistance, even at elevated temperatures.
- Exhibits excellent electrical, flame, and heat resistance.
- The cables are also exceptionally resistant to grease, mineral oils and ozone.
Cable Structure
|
|
General Construction
|
|---|---|
|
Conductor
|
Annealed tinned Copper wires Solid (Class 1), Stranded (Class 2), flexible (Class 5) complying with the requirement of IS 8130-1984
|
|
Seperator Tape
|
Suitable material separator tape may be applied over the conductor
|
|
Insulation
|
General service elastomer compound Type IE1 of IS 6380-1984
Heat Resisting elastomer compound Type IE2 of IS 6380-1984 Silicone Rubber Type IE 5 of IS 6380-1984 |
|
Core Identification
|
Colored insulation, Nos. PE tape, Colored proofed tape, Nos. printing
|
|
Fillers
|
Natural or synthetic fibers or elastomer suitable for the operating temperature and compatible with the insulating material
|
|
Sheath
|
General service sheath Type SE1/SE2 of IS 6380-1984
Heavy Duty Sheath Type SE3/SE4 of IS 6380-1984 |

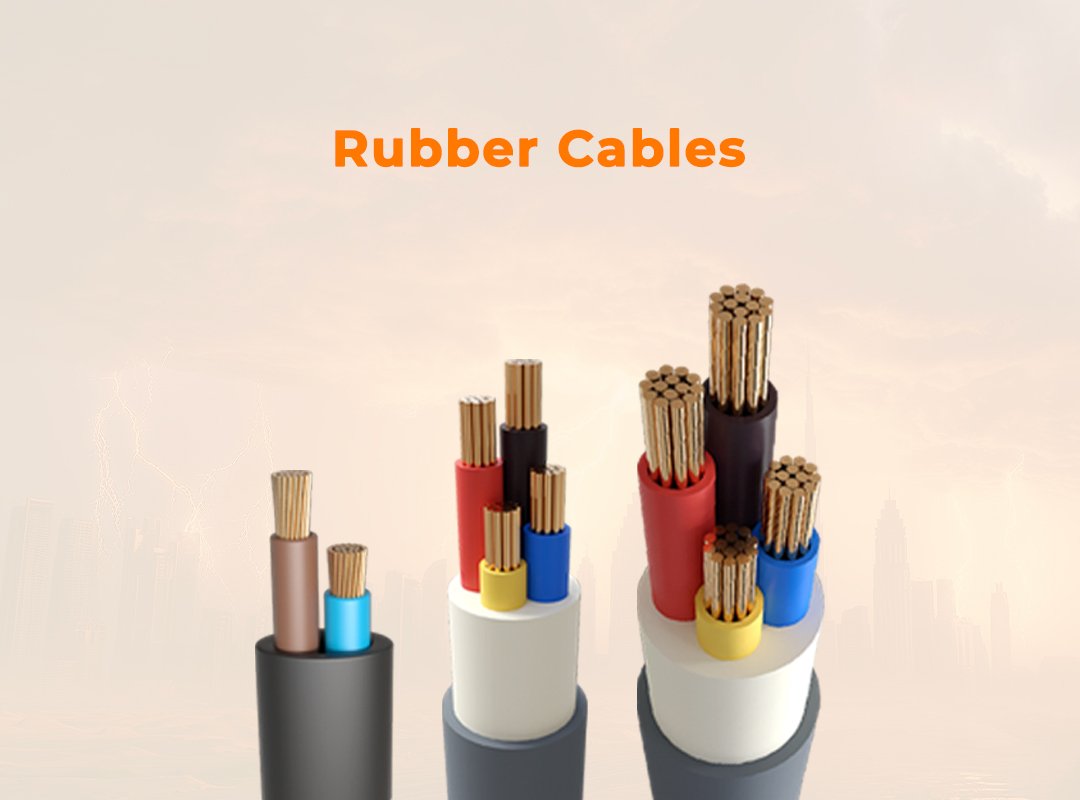

Rubber Cables
