PVC Cable Compounds (Insulation)
Our PVC cable insulation compounds are formulated for high thermal stability,
excellent electrical properties, and long-lasting performance.
excellent electrical properties, and long-lasting performance.
PVC Cable Compounds (Insulation)

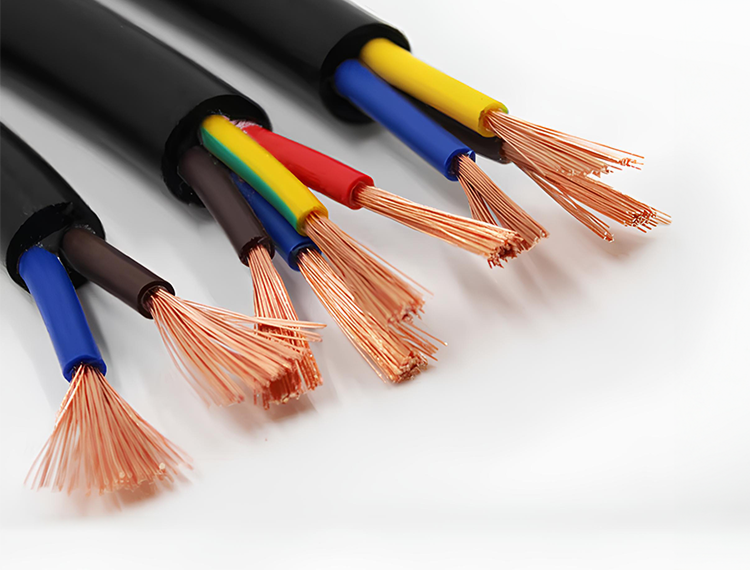

At Hycount PVC, we manufacture a wide range of PVC insulation compounds specifically designed for wires and cables. Our formulations are developed with precision using high-quality plasticizers, stabilizers, and performance modifiers, carefully blended to meet the most demanding electrical and mechanical standards.
Every batch is tailored to client-specific requirements whether it’s flexibility, flame retardancy, or thermal stability and ensuring the perfect balance of safety, durability, and performance.
- Custom formulations available
- Manufactured using premium-grade raw materials
- Tested for consistent insulation properties and long-term reliability
PVC Cable
Compounds (Insulation)
At Hycount PVC, we manufacture a wide range of PVC insulation compounds specifically designed for wires and cables. Our formulations are developed with precision using high-quality plasticizers, stabilizers, and performance modifiers, carefully blended to meet the most demanding electrical and mechanical standards.
Every batch is tailored to client-specific requirements whether it’s flexibility, flame retardancy, or thermal stability and ensuring the perfect balance of safety, durability, and performance.
- Custom formulations available
- Manufactured using premium-grade raw materials
- Tested for consistent insulation properties and long-term reliability
Technical Specifications
|
Parameter
|
Bp-09
|
Bp-15
|
Bp-04
|
Bp-10FR
|
Bp-01
|
Bp-25
|
|---|---|---|---|---|---|---|
|
Grade Name (as per IS 5831)
|
Type A
|
Type A
|
Type A
|
Type A FA
|
Type B
|
Type C
|
|
Maximum Operating Temperature (°C)
|
70
|
70
|
70
|
---
|
---
|
85
|
|
Specific Gravity (±0.02)
|
1.30
|
1.40
|
1.45
|
1.50
|
1.35
|
1.33
|
|
Hardness (Shore A)
|
88 (±3)
|
90 (±3)
|
90 (±3)
|
92 (±3)
|
94 (±3)
|
90 (±3)
|
|
Thermal Stability @ 200°C (min)
|
110
|
125
|
110
|
130
|
150
|
110
|
|
Volume Resistivity @ 27°C (Ω•cm)
|
5 × 10¹³
|
1 × 10¹⁴
|
7 × 10¹³
|
7 × 10¹³
|
1 × 10¹⁴
|
1 × 10¹⁵
|
|
Tensile Strength (N/mm²)
|
16
|
17
|
16
|
15
|
18
|
18
|
|
Elongation at Break (%)
|
250
|
250
|
250
|
230
|
180
|
200
|
|
Ageing Temperature (°C)
|
80
|
80
|
80
|
80
|
100
|
135
|
|
Duration of Ageing (Hours)
|
168
|
168
|
168
|
168
|
168
|
168
|
|
Variation of Tensile Strength (±%)
|
20
|
20
|
20
|
20
|
25
|
25
|
|
Variation of Elongation (±%)
|
20
|
20
|
20
|
20
|
25
|
25
|
|
Loss of Mass (mg/cm²)
|
2
|
2
|
2
|
2
|
2
|
2
|
|
Oxygen Index (LOI)
|
---
|
---
|
---
|
31
|
---
|
---
|
|
Temperature Index (°C Min.)
|
---
|
---
|
---
|
300
|
---
|
---
|
